Product Review: DataRemote CDS-9090

Design & Build Quality

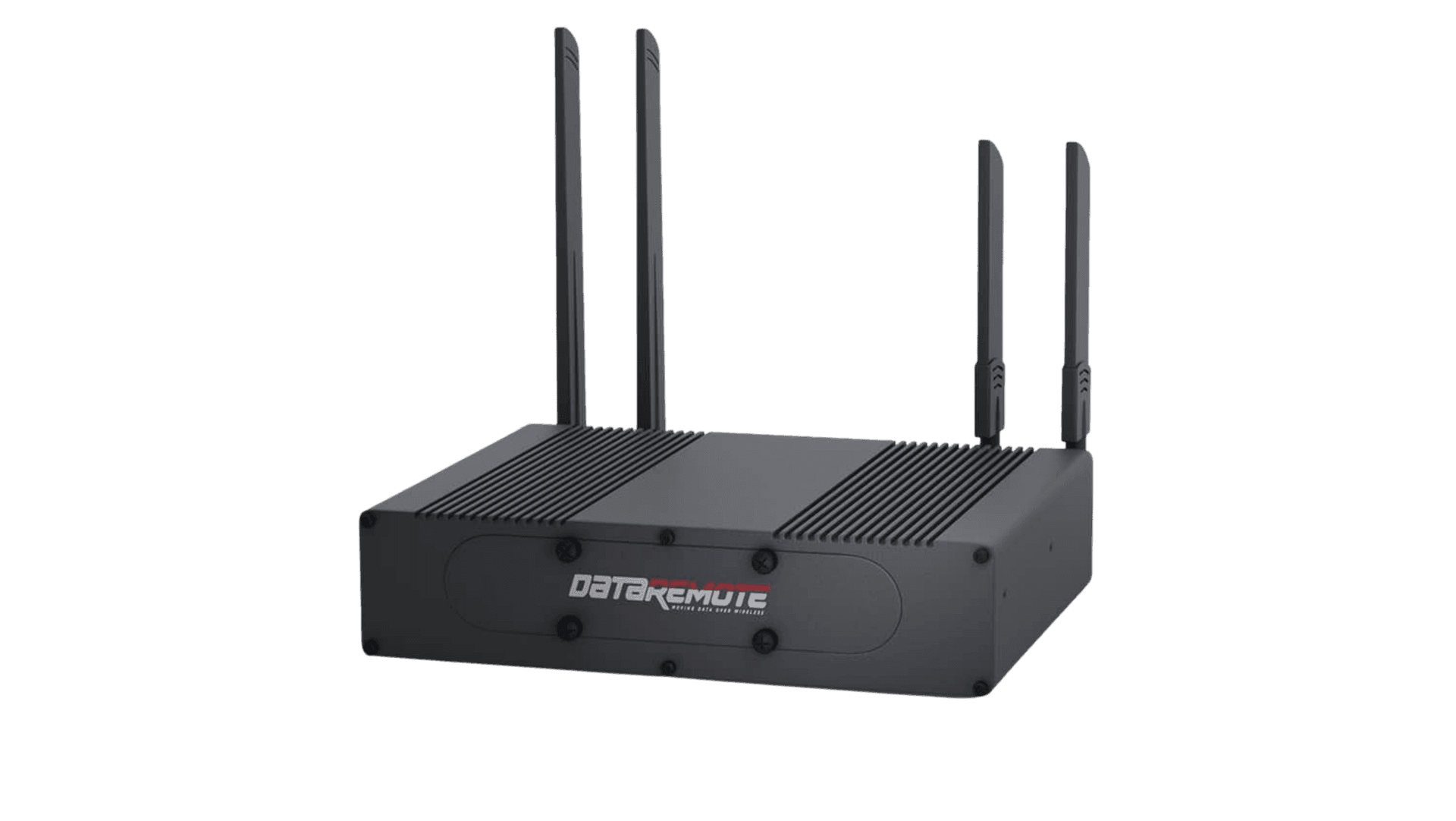

The CDS-9090 is built for commercial and industrial environments. The black aluminum extrusion case measures 13” × 10” × 3” and weighs 7.5 lbs — substantial enough to convey durability, compact enough to mount in a standard telecom closet or equipment room. A wall-mounting bracket is included in the box.

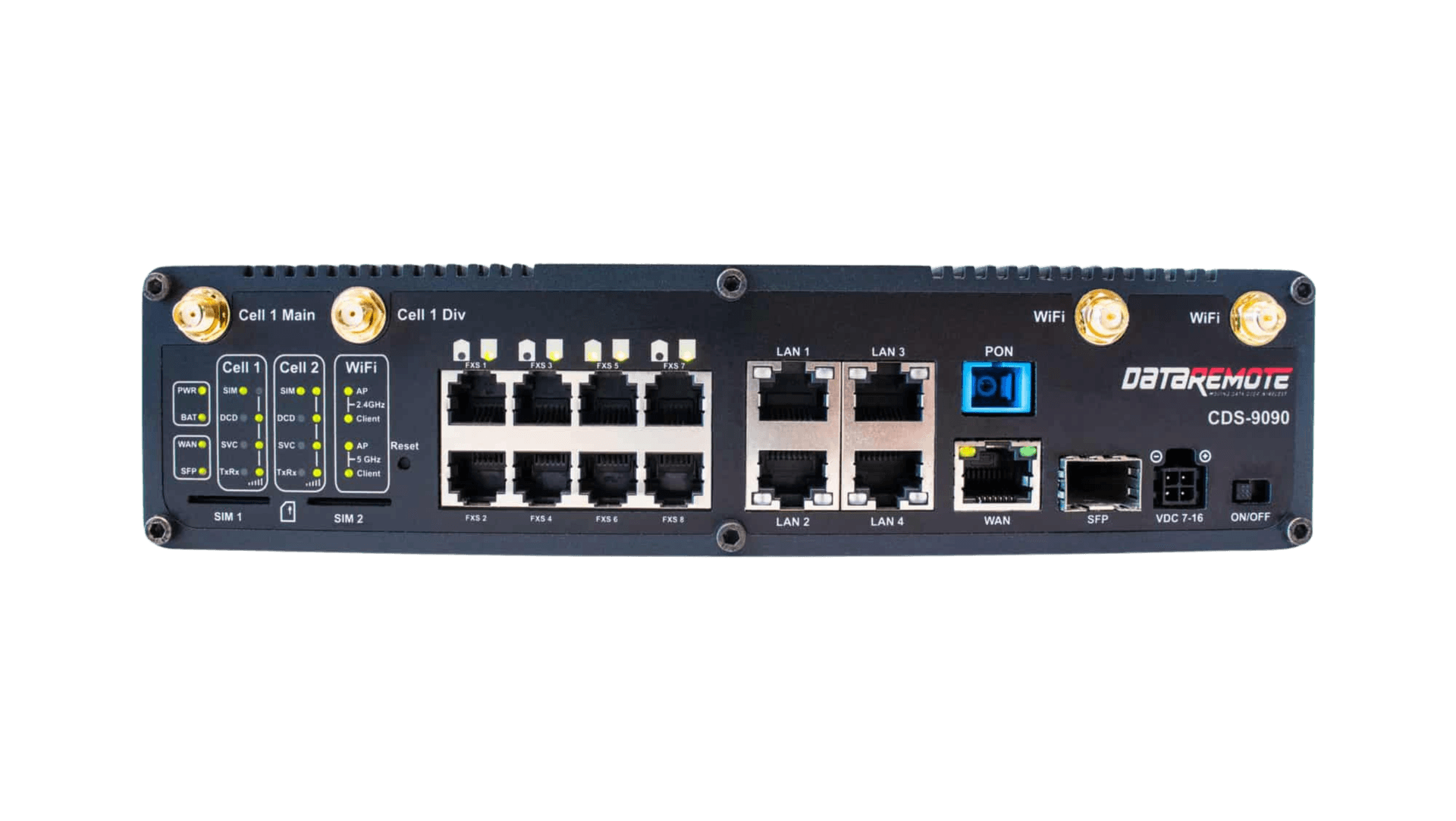

The rear panel is well-organized: eight RJ-11 FXS ports across the top, five RJ-45 Ethernet ports below (1 WAN/SFP combo + 4 Gigabit LAN), four external antenna connectors (2 LTE, 2 dual-band Wi-Fi), USB 3.0 and 2.0 ports, and a DC power input with a locking 5-pin plug. LED status indicators on the front panel provide at-a-glance diagnostics for power, battery, cellular signal, and line status.

The dual SIM card slots are accessible without disassembling the unit, which matters for field technicians swapping SIMs across deployments. The hot-swappable lithium-ion battery (7.4V, 10,000mAh) slides in and out cleanly and provides up to 12 hours of standby operation — a critical feature for life-safety applications that must stay online during power outages.

Build quality is excellent. The CDS-9090 meets GR-63-CORE shock standards (tested to a 75cm / 30-inch drop) and operates across a temperature range of -5°C to +50°C. For POTS replacement deployments in elevator machine rooms, parking garages, and outdoor enclosures, this durability matters.

Performance & Connectivity

The CDS-9090 runs on an LTE Cat 4 cellular modem supporting bands 2, 4, 5, 12, 13, 14, and 71 — covering all major US carrier frequencies including Band 14 for FirstNet priority access. This is important for deployments in public safety environments where fire alarm panels and emergency call boxes require priority network access during emergencies.

For POTS replacement, raw throughput matters less than connection stability and voice quality. The CDS-9090 delivers PESQ scores above 4.3 on G.711 and 3.7 on G.729 — well above the threshold for reliable voice communication over cellular. Echo cancellation, in-band and out-of-band DTMF support, and full E911 compliance ensure that the analog services running through the device perform as expected.

The dual SIM architecture is where the CDS-9090’s connectivity design gets interesting. With two SIM slots, the device can maintain profiles on two separate carriers, providing automatic failover if the primary carrier experiences an outage. This is the standard approach for MSPs deploying POTS replacement at scale — but how you fill those slots has significant implications for cost, management complexity, and actual failover performance.

Wi-Fi connectivity (dual-band 802.11 b/g/n at 2.4GHz and 802.11 a/ac at 5GHz) provides an additional connectivity path, while the Gigabit Ethernet ports support WAN failover from a wired broadband connection. The device can route traffic across cellular, Wi-Fi, and wired connections, providing multiple layers of redundancy.

Features & Functionality

• The CDS-9090’s feature set is purpose-built for POTS replacement. Where general-purpose LTE routers require workarounds to handle legacy analog signals, the CDS-9090 handles them natively.

  • 8 FXS ports. The highest port density in the POTS IN A BOX lineup. Each port supports independent line configurations — voice, fax, alarm, modem, or ring-down — allowing a single device to replace up to eight copper POTS lines at a site.

  • Proprietary analog replacement technology. DataRemote’s Enhanced Lines technology goes beyond standard VoIP to support legacy analog signals including FSK modem tones, fire alarm protocols, burglar alarm signals, and fax transmission. This is critical for applications where standard SIP/VoIP solutions fail.

  • 12-hour battery backup. The integrated lithium-ion battery provides extended operation during power outages. For fire alarm panels and elevator phones that must comply with code requirements for backup power, this is a differentiator over competing devices that require external UPS equipment.

  • Band 14 / FirstNet capable. When optioned for Band 14, the CDS-9090 can access FirstNet priority and preemption on the AT&T network. This is relevant for deployments in government buildings, hospitals, and public safety facilities.

  • Ara device management. DataRemote’s cloud-based management platform provides remote provisioning, real-time monitoring, firmware updates, and mass device management via TR-069. The API enables integration with MSP billing and ticketing systems.

  • Automatic cellular failover. If the primary cellular connection drops, the device automatically switches to the secondary SIM. Combined with WAN/Wi-Fi failover paths, the CDS-9090 provides multiple layers of connectivity redundancy.

  • E911 with GNSS location. Integrated GNSS provides precise location data for E911 compliance — a legal requirement for voice lines in commercial buildings.

  Graceful battery shutdown. When battery power reaches critical levels, the device sends an alert before shutting down, giving monitoring systems time to register the status change rather than losing contact without warning.

Use Cases & Applications

The CDS-9090 is designed for sites where multiple POTS lines need to be replaced simultaneously. Its eight-port design makes it most cost-effective at multi-line locations rather than single-line deployments.

Fire Alarm Panels

Fire alarm systems are the most compliance-sensitive POTS replacement application. The CDS-9090 supports the analog signaling protocols required by fire alarm communicators, maintains battery backup for code compliance, and provides the line-monitoring capabilities that fire marshals and authorities having jurisdiction (AHJs) require. With Band 14 support, deployments in government and public safety buildings gain FirstNet priority access.

Elevator Phones

Building code requires working elevator phones in most jurisdictions. The CDS-9090’s ring-down capability and voice quality make it suitable for elevator emergency phone lines. The battery backup ensures the phone line stays active even during the building power outages that are most likely to trigger elevator emergencies.

Burglar and Security Alarm Systems

Legacy alarm panels that communicate via analog phone lines to central monitoring stations can connect directly to the CDS-9090’s FXS ports. The device supports the DTMF and FSK signaling protocols these panels use, avoiding the need to replace the entire alarm system when the copper line is retired.

Multi-Tenant Commercial Buildings

A single CDS-9090 can replace up to eight copper lines at a commercial site — handling the fire panel, elevator phone, security system, gate access, intercom, fax machine, and building management system from one device. This consolidation reduces equipment, installation time, and ongoing management.

Point of Sale and ATM Terminals

Retail and banking locations with legacy POS terminals or ATMs that still communicate over analog modem connections can use the CDS-9090 to maintain those connections after copper retirement without replacing the terminal hardware.

Pricing & Value

The CDS-9090 is priced at the higher end of the POTS replacement ATA market, reflecting its eight-port capacity, integrated battery, Band 14 support, and enterprise device management. For single-line deployments, DataRemote’s smaller devices (CDS-9010, 90X2) offer lower per-unit costs.

However, for multi-line sites, the CDS-9090’s eight-port design delivers the lowest per-line hardware cost. One CDS-9090 replacing eight copper lines is significantly more cost-effective than deploying four two-line devices at the same site. Total cost of ownership depends heavily on the connectivity model.

The hardware cost is fixed regardless of SIM choice. The connectivity cost is where MSPs have the most leverage to improve margins. At scale, the SIM savings often exceed the hardware cost itself within the first 12–18 months of deployment.

Simbase Expert Recommendation

The DataRemote CDS-9090 is the most capable POTS replacement ATA available for multi-line enterprise deployments. For MSPs replacing copper at commercial buildings, hospitals, multi-tenant properties, and public safety facilities, it is the hardware standard.

Paired with Simbase multi-carrier cellular connectivity, the CDS-9090 becomes the lowest total-cost-of-ownership POTS replacement solution on the market. Multi-IMSI failover eliminates the slow modem-level SIM switching that compromises life-safety reliability. Utility pricing eliminates the idle inventory waste that erodes MSP margins. A single management portal eliminates the operational complexity of juggling multiple carrier relationships.

Our conclusion: The CDS-9090 is the right hardware for serious POTS replacement deployments. Simbase is the right connectivity to put inside it. Together, they give MSPs the reliability, economics, and operational simplicity to scale profitably through the copper retirement cycle.
