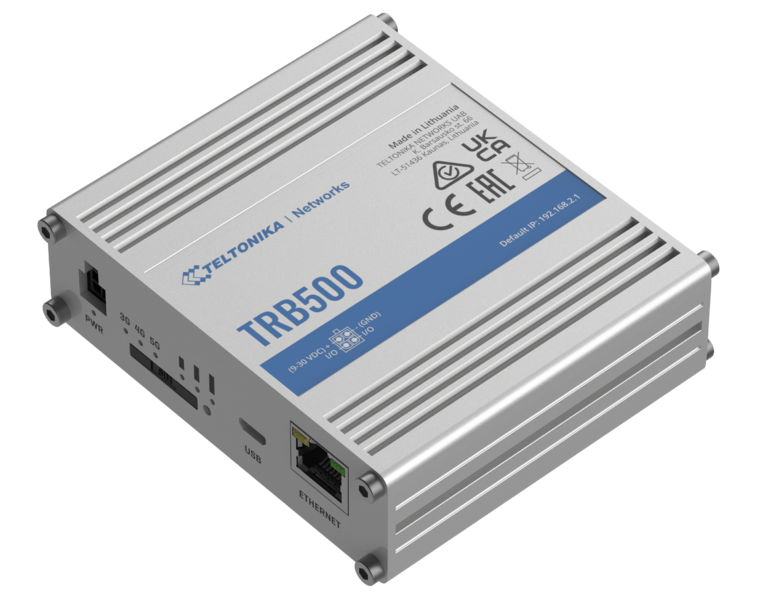

Teltonika TRB500
Small and energy-efficient 5G gateway that enables ultra-fast data transmission.
This cutting-edge device leverages the power of 5G and advanced networking capabilities to deliver high-speed internet access in industrial environments. The TRB500 supports a wide range of IoT protocols, ensuring seamless integration with existing systems and equipment. - Watch Video
-
The Teltonika TRB500 Industrial 5G Gateway stands out with its rugged design and high performance, making it suitable for demanding industrial applications. Engineered to operate reliably in extreme conditions, this gateway features dual-SIM functionality for continuous connectivity and enhanced redundancy. Its compact form factor allows easy installation in tight spaces, while the user-friendly interface ensures straightforward management and configuration.
Key features of
Teltonika TRB500
3.3Gbps ↓ / 900Mbps ↑
No WAN Port
1x LAN Port
1 x SIM Slot
Cellular Modem
(5G, 4G LTE Cat. 20)
No WIFI
Benefits of
Teltonika TRB500
The TRB500 enhances network reliability through its 5G connectivity, which provides faster data speeds and lower latency compared to previous generations. With dual-SIM support, it ensures uninterrupted service by automatically switching between networks in case of a connectivity failure, making it ideal for critical industrial operations.
This gateway is built with versatility in mind, supporting various communication protocols including MQTT, Modbus, and more. It facilitates easy integration with a wide range of industrial devices and scales effortlessly as your IoT infrastructure grows. Its forward compatibility with upcoming technological advancements ensures a future-proof investment.
Security is paramount in industrial applications, and the TRB500 addresses this with advanced security protocols and features, including VPN support and firewall protection. These features help safeguard sensitive data and protect your network from unauthorized access, providing peace of mind in vulnerable industrial environments.
Use-cases
Teltonika TRB500
5G gateway for entertainment & industrial teleoperation.
Technical Specifications
Technical Specifications
WAN Interface
LAN Interface
Wi-Fi
Networking Interface
Power Consumption
Power Input voltage range
Dimensions
Weight
Antennas
Warranty
Package Content
Datasheet
No WAN port
1x LAN port
No
No
Firewall, Dynamic DNS and port forwarding support
Teltonika Remote Management System (RMS)
9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max
Idle: < 3 W, Max < 6 W
4 x SMA for Mobile
100 x 30 x 93.4 mm
2-Years Limited Warranty
Teltonika TRB500 industrial 5G gateway
4x Mobile antenna (rotatable, SMA male)
Ethernet cable
SIM adapter kit
Power adapter 9W
Micro USB cable (80 cm)
Quick Start Guide
Please note: RMS license not included
SIM
241g
OpenVPN, IPSec, GRE, L2TPv3, L2TP
3.3Gbps (5G) DL, 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
Management Interface
Security Interface
Data transfer
USB
1 SIM slot
Frequently Asked Questions
If any of your questions remain unanswered, reach out to our team to answer them for you.
-
It has one Ethernet port supporting speeds of 10/100/1000 Mbps.
-
It supports various VPN technologies including OpenVPN, IPsec, GRE, WireGuard, and more.
-
It operates in temperatures from -40 °C to 75 °C and has a non-condensing humidity range of 10% to 90%.
-
Yes, it supports multiple mounting options including DIN rail, wall mount, and flat surface, with necessary kits.
-
Yes, it is backward compatible with 4G (LTE CAT 20) and 3G networks, making it a future-proof solution for areas where 5G is not yet available.
